  • TS 500

TS 500

Key word:TS 500
Summary:◎ Seal origin: Turkey, UK (Turkey, England)◎Metal blank type: Not a pipe fitting◎Metal origin: Northeast Special Steel
Online order
Details Photo Gallery

 Product component configuration

◎ Seal origin: Turkey, UK (Turkey, England)
◎Metal blank type: Not a pipe fitting
◎Metal origin: Northeast Special Steel
◎Assembly mode: press in
◎Inflating mode: Program control
◎Piping system: Can connect

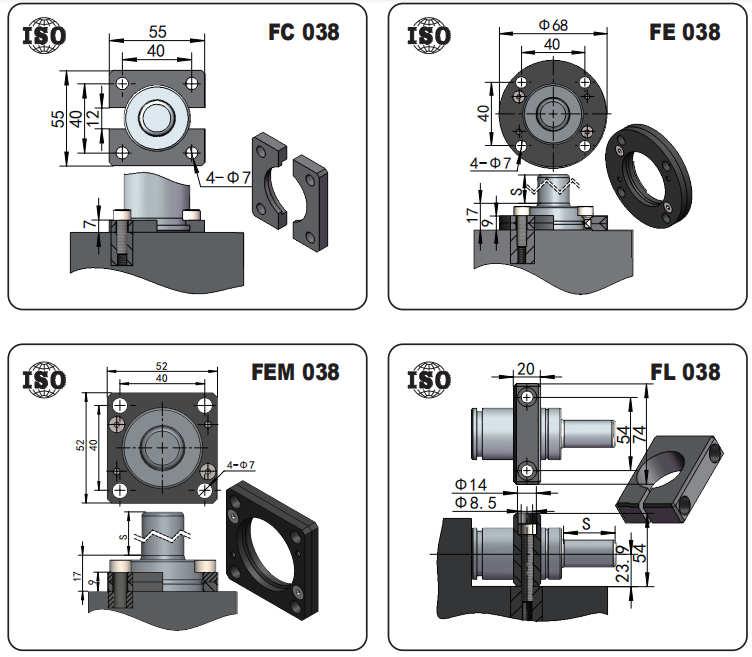

◎Seat system: Need to use accessories (Need parts)

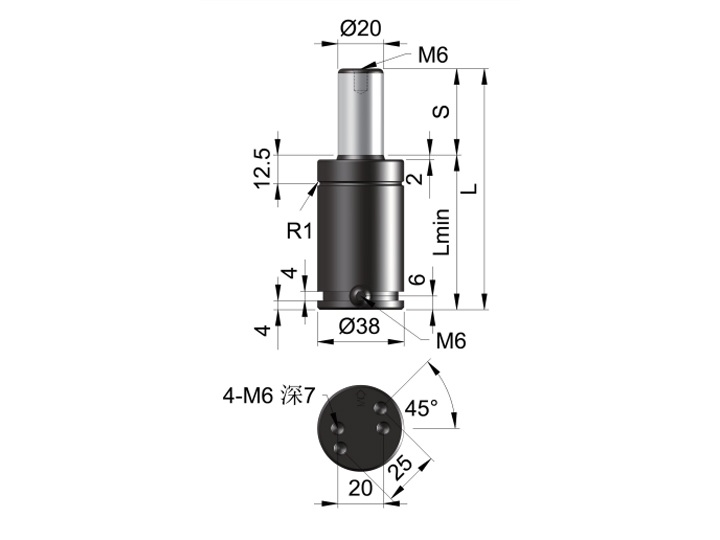

 Length selection

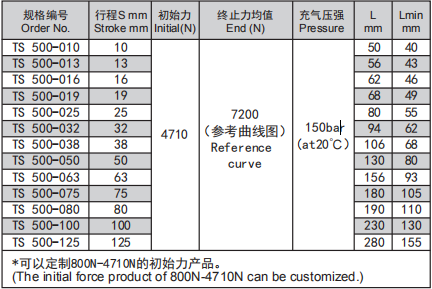

 Number selection

TS 500 - 050 - P150 - FEM038

(Order) (Stroke) (Pressure) (Flange)

Technical date
-Gas medium:N2
-Gas pressure:25bar-150bar
-Max temperature:80℃
-change:±0.3%/℃
-Max line spee:1.6m/s

-(frequency:80spm(at20℃)

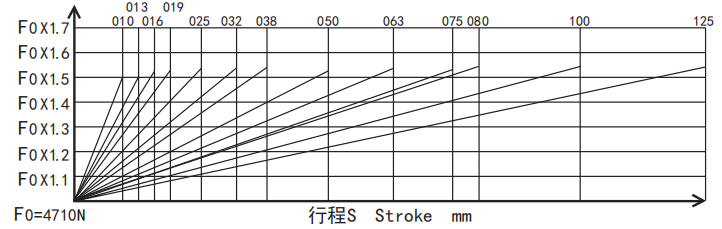

 Pressure curve
