◎ Seal origin: Turkey, UK (Turkey, England)
◎Metal blank type: Not a pipe fitting
◎Metal origin: Northeast Special Steel
◎Assembly mode: press in
◎Inflating mode: Program control
◎Piping system: Can connect

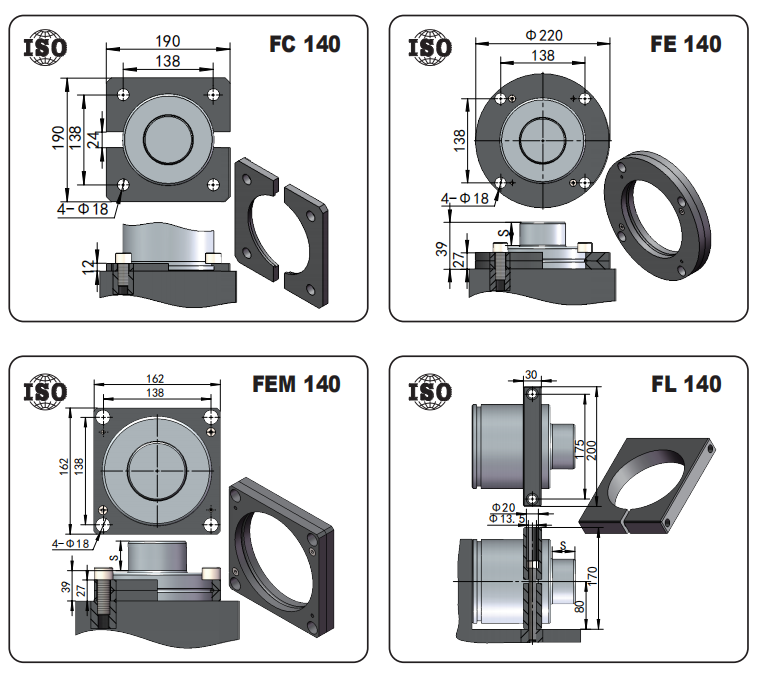

◎Seat system: Need to use accessories (Need parts)

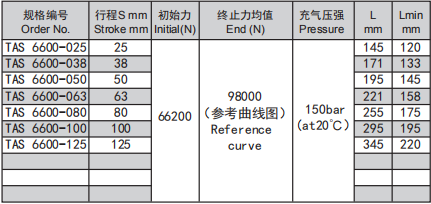

 Length selection

 Number selection

TAS6600 - 050 - P150 - FEM140

Technical date

-Gas medium: N2
- Gas pressure: 25bar-150bar
-Max temperature: 80 ° C
- Pressure change rate / temperature (change): ± 0.3% / ° C
-Max line speed: 0.8m/s
- Maximum number of reciprocations (frequency): 50spm (at 20 ° C)

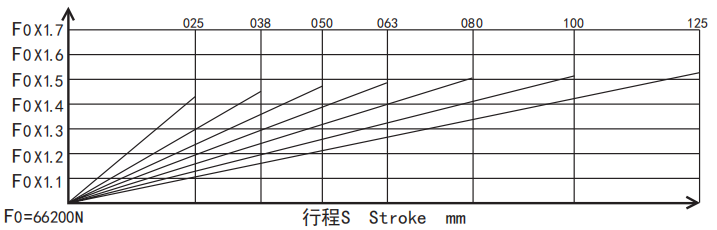

 Pressure curve
