◎ Seal origin: Turkey, UK (Turkey, England)
◎Metal blank type: Not a pipe fitting
◎Metal origin: Northeast Special Steel
◎Assembly mode: press in
◎Inflating mode: Program control
◎Piping system: Can connect
◎Seat system: Need to use accessories (Need parts)

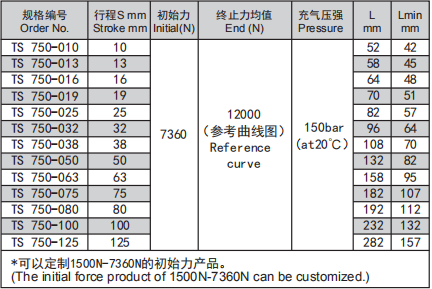

 Length selection

Number selection

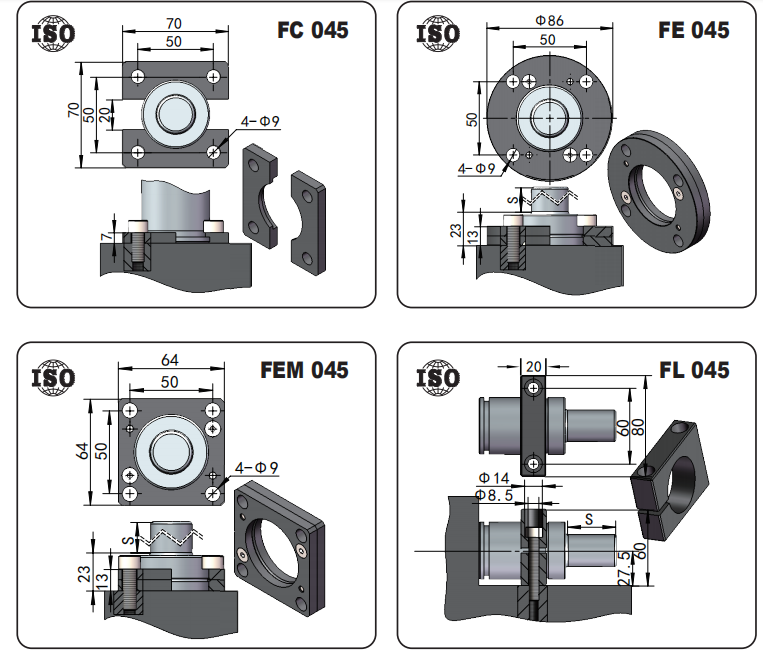

TS 750 - 050 - P150 - FEM045

(Order) (Stroke) (Pressure) (Flange)

Technical date

-Gas medium):N2
- Gas pressure: 25bar-150bar
-Max temperature: 80 ° C
- Pressure change rate / temperature (change): ± 0.3% / ° C
-Max line speed: 1.6m/s
- Maximum number of reciprocations (frequency): 80spm (at 20 ° C)

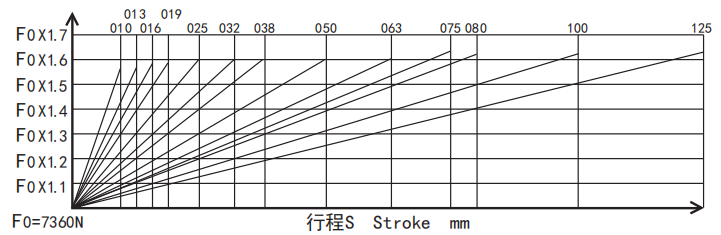

Pressure curve
